DIY CNC Build in Switzerland - Cutting the T Slot Aluminium Extrusions

I have decided to build a robust and strong CNC base. So I decided to use T Slot Aluminium extrusions for construction. I have bought:

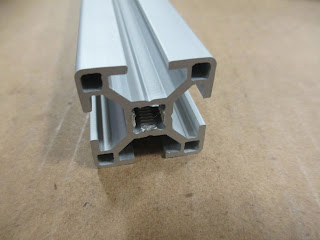

  •  T Slot Aluminum Extrusion 30 Series 30-30.
  •  T Slot Aluminum Extrusion 40 Series 40-40.
So I need to cut the extrusions according to my design. I have only circular saw and a jig saw as tools. I needed something to cut the extrusions.
I decided to use hacksaw. For this reason a needed a guide to cut straight 90 degree angles. So I built one:
