DIY CNC Build in Switzerland - Building the X and Z axis carriage - Part 2

Again a long break:) I have started working on the CNC project again. This will be actually a really long post. I have done quite a lot. So lets start asap.

As I mentioned in earlier posts I needed to support the gantry from sides so that it would be stiff enough for the bending forces that may occur. I used aluminum sheet and cut the rectangles based on my updated design. To mount this plate, I did not use the fancy aluminum extrusion mounting stuff. Instead, I drilled all the way through the extrusion and used a M5 screw and nut to keep the plate in place.

 Also for the back side of the gantry, I needed something for the support and motor mount. So again used aluminum plate. Below you can see the final assembly. The problem here was to decide the places for the holes so that nothing will interfere with each other.

Now comes the worst part:) In the last picture of the previous post I have just showed you how the x axis would look like. You may have realized that the steel rods are not long enough to mount to the side aluminum plates of the gantry. I have ordered a precise cut to my original design lengths and as I have updated my design. I have a 13 mm gap from each side:) Nice, right? So I needed some kind of riser blocks between the side plates and the shaft supports. I needed something strong so I used MDF. The problem here is that the movement of X Axis is parallel to the holes. This is ok but the weight of the Z axis and Z axis forces that will occur while miling something are perpendicular to the bolt direction. SO, I could not simply use an ordinary riser or a little piece of block as it would all together bend. That is why we need to fill the gap between aluminum extrusions as much as possible.

 In order to mount the risers, I needed to disassemble whole gantry. The holes must be error free and incredible accurate. Couple of degrees error during drilling the MDF would lead to disaster on the miling surface as it would be magnified along the X Axis.

 I started one by one mounting the risers and the shaft supports for the steel rods of X axis. Without mounting the back plate and aluminum extrusion, I did a test fit with the X Axis base plate. It looked good to me and I decided to continue although I had 0.63 mm error on the right side. While I was drilling I forgot to tap a guide mark on the aluminum and drill wanted to move 0.63mm down. Below are pictures from different angles.

Again, one step back:) In order to drill the motor mount and belt drive holes, I needed to disassemble the back plate. Actually, the test fitting was very helpful as I re-measured the distances for where I have to drill. Below picture with 4 holes is for motor mount and picture with 2 holes is for pillow block bearing that holds the belt drive pulley.

I started again mounting the things together. First I mounted the plate, then the back aluminum extrusion.

 Now it is time to mount the X axis motor. I decided to try motor itself without building a gearbox. Using a gearbox is really painful. It is very hard to align the gears after drilling the holes and it is too NOISY. As this is my first CNC, I am trying the easiest way first, if it does not work, I will rework on it;) So to mount the motor, I measured the hole sizes from the motor and tapped it with M5. I have no problem to ruin my motors:)

 Time to mount the motor... There is a bevel on top of the motor for standard mount brackets. To compensate this bevel, I used simply 4 washers between the plate and the motor. Please note that the washer height must be exactly the height of bevel and it should not be a large washer.

 Using a drill would help you as you get tired mounting/unmounting things:)

 Now time to mount the billow block bearing for the X axis belt drive.

 The pillow bearing I used has an inner hole diameter of 8mms. I have used just ordinary aluminum rod as it is not that important to use steel rod. I have already got steel hardened 8mm rod but i used aluminum. You may say aluminum is not strong enough but the length I used is 40mm and only 10mm is out of bearing which is used to hold pulley. Also the nature of the movement is that we have a rotation and the force applied by the belt tension is applied to all the sides of the aluminum rod during rotation. So I HOPE IT WONT BEND:)

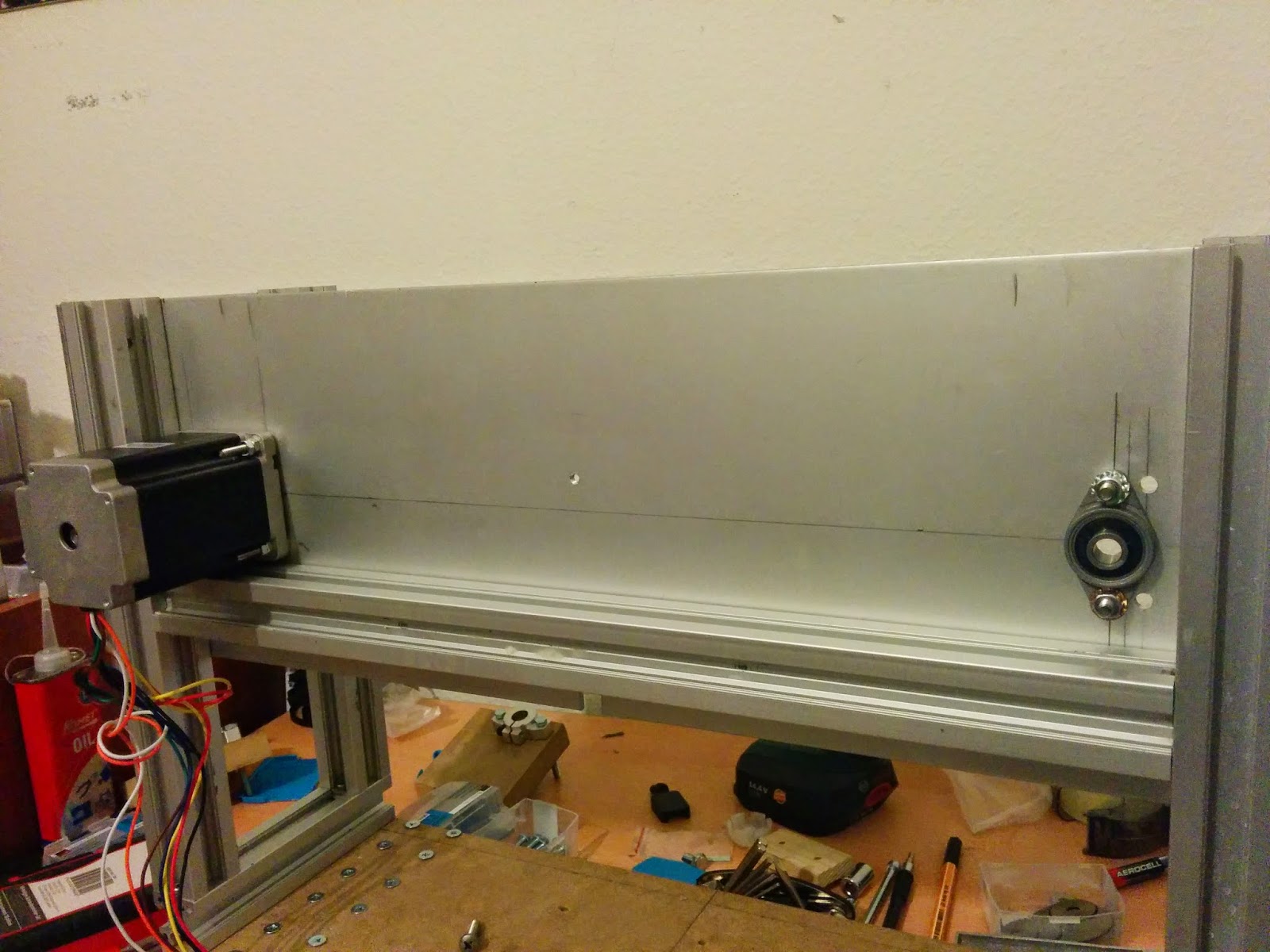

So final assembly looks like below with and without pulley...

 I have done just a test fit of pulleys and belt(with clamp) to see the movement axis better.


So now the fun part:) building the Z Axis carriage. I started with the exact same size of MDF I used for Y axis carriage. This helped me a lot during aligning the linear bearings to Y axis. I needed to drill the holes to mount the Z axis motor on the X axis plate. I marked them and drilled with the drill press. Here again I needed washers to compensate the motor bevel. For the motor shaft hole I used 10mm drill bit so it would move easily with 2 mm clearance as the motor shaft has 8mm diameter.

 Now, I needed to drill the holes for the pillow block bearing for the pulley of Z Axis. I have such a great design that I used the shaft support holes to mount pillow bearing:) No need for extra holes.



Time to mount the motor.

Time to build the pulley shaft for Z axis. Again 8mm aluminum rod...

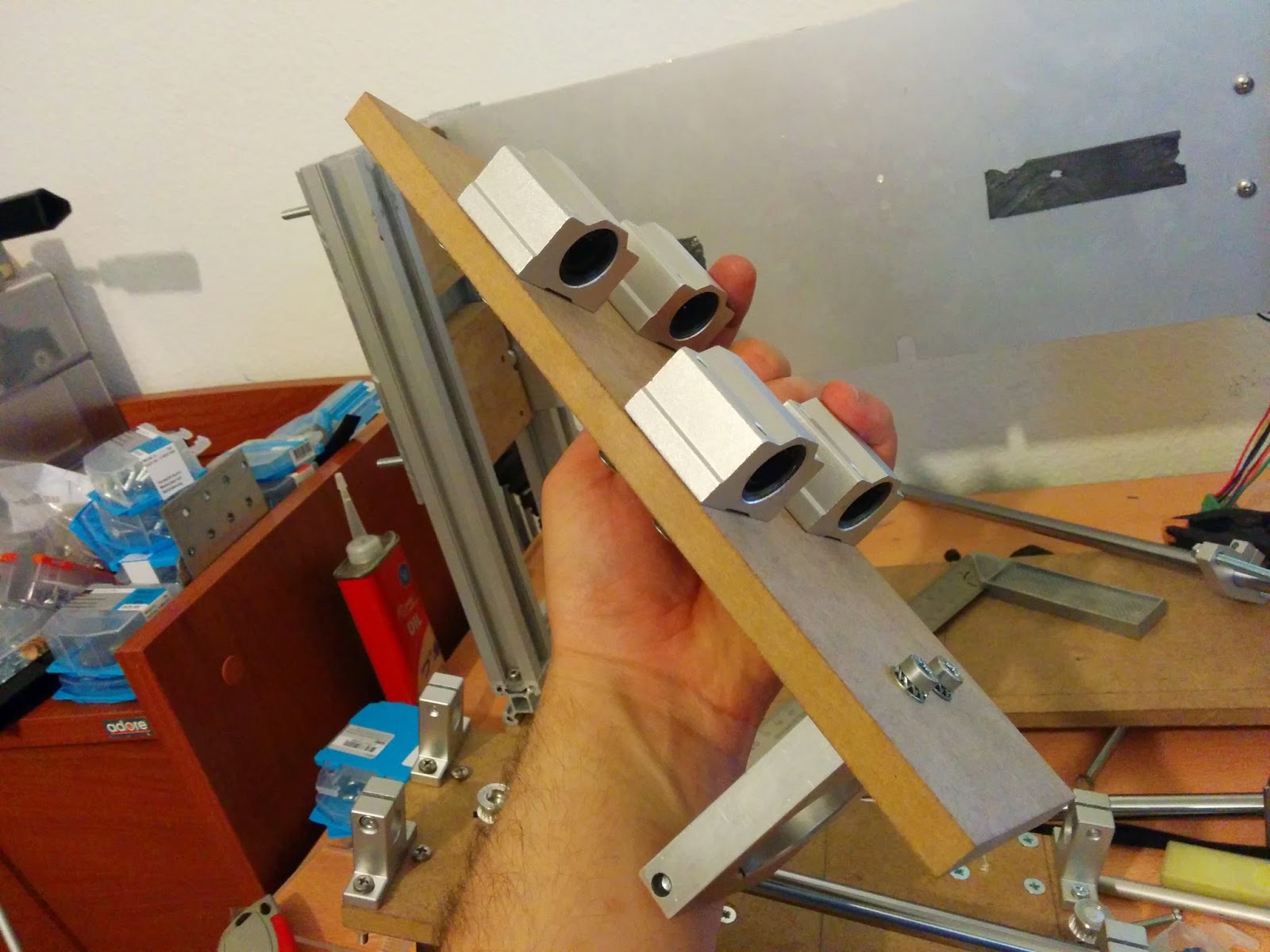

 To visualize how linear bearings fit, below are a couple of pictures before the real mounting.

 Now, from MDF I marked the holes for linear bearings for Z axis carriage and drilled them with drill press.

 I counter sunk the holes so screw heads will be flush with the surface. Now, mounting the linear bearings to Z carriage.

 I mounted the spindle mount as well. See below.

 Now time to assemble Z carriage with X axis. The most tricky part is to bind the belt to Z carriage. For this I need exact space between the X and Z carriages. I will show this in the next post.

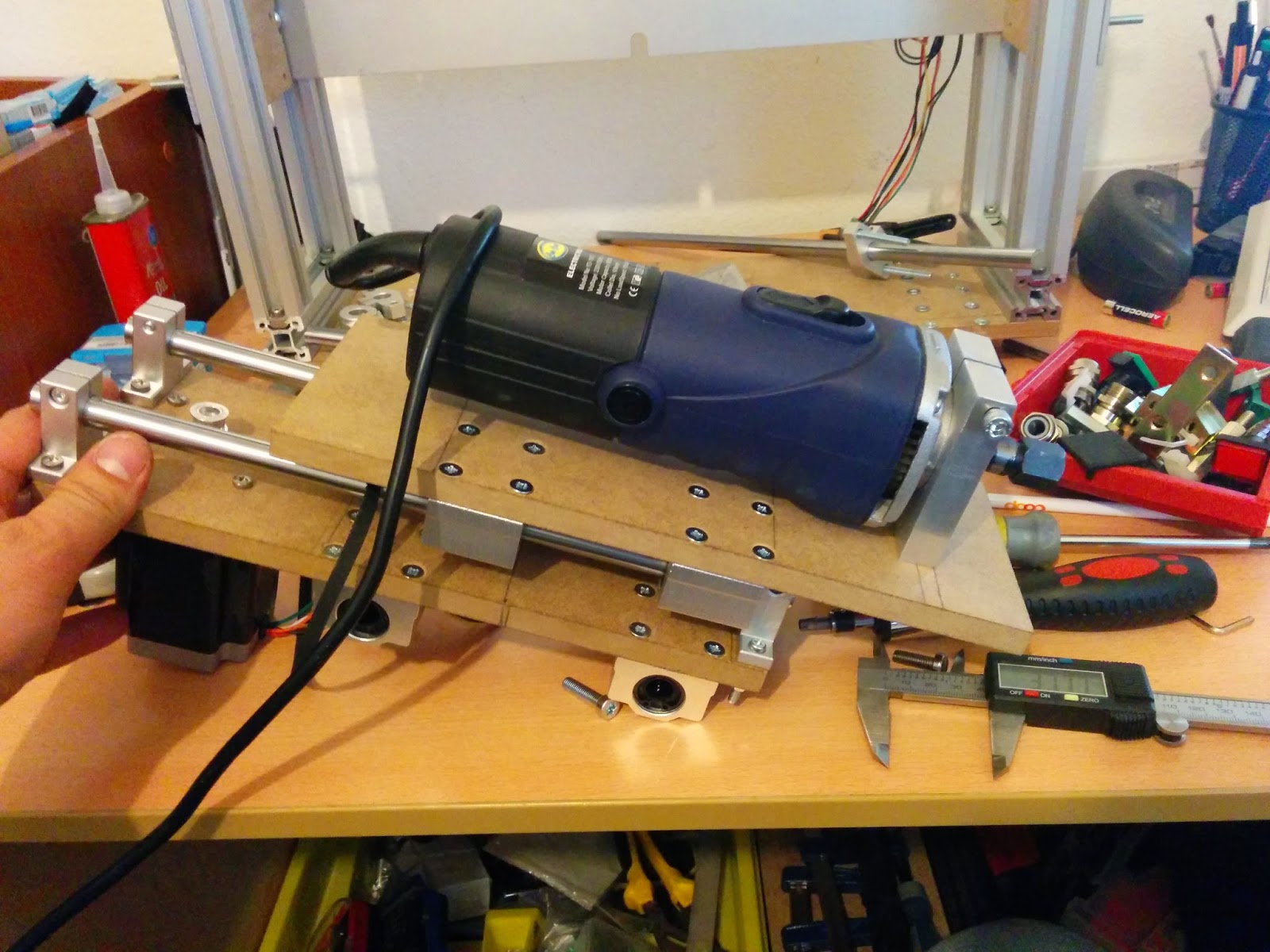

 And here is the final assembly.

Hope you are enjoying the posts. Make a comment if you would like to see something in detail. See you next time....
